Bellman & Symfon Visit Bed Shaker

Step 1
Step 2
Step 3

or make 4 interest-free payments of $16.00 fortnightly with Afterpay More info

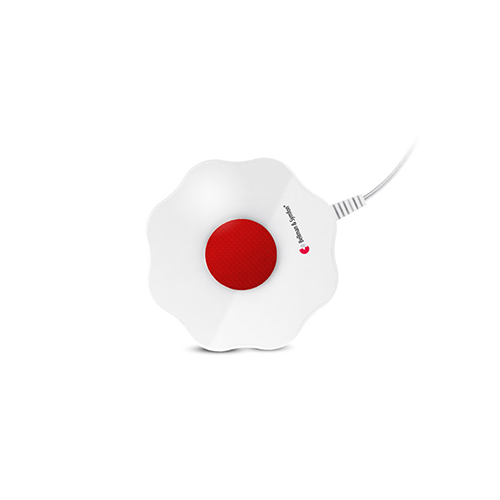

The bed shaker from Bellman & Symfon will alert even a heavy sleeper. Simply place the bed shaker under your mattress or pillow and plug it into any of the Bellman & Symfon alarm clocks or receivers. The bed shaker works with all Visit receivers and requires no internal battery.

FEATURES:

Powerful vibrations Wakes up even heavy sleepers
Anti-slip protection Stays in position when it vibrates
Safe to use Operates at low voltage
Long cable, 2 m Easy to place where you want it
Visit compatible Works with all the Visit receivers

Function

The BE1270 Bed shaker is a vibrator for indoor use that is placed in the bed to attract the attention of the user via vibrations. The Bed shaker vibrates when instructed to do so by the unit to which it is connected.

Installation and connection

The Bed shaker is usually placed under a pillow or close to the body.

The BE1270 connects to a range of Bellman & Symfon products with vibrator outputs.

Testing

Connect the Bed shaker to a Visit receiver or other product with vibrator output and follow the relevant testing procedure.

Troubleshooting

PROBLEM SOLUTION
Does not vibrate
  • Check that the plug is connected correctly.
  • Check that the receiver is picking up signals.



Technical illustration

be1270 bed-shaker linedrawing

  1. Anti-skid protector
  2. Connecting plug

Technical information

Power supply

Operating voltage:

2.0 – 4.0 V DC from a Bellman Visit receiver.

Power consumption:

250 - 750 mA

Additional information

For indoor use only

Dimensions W x H x D:

88 x 88 x 27 mm

Weight:

120 g

Colour:

White with red rubber anti-skid protector.

Cable lenght:

2 m
