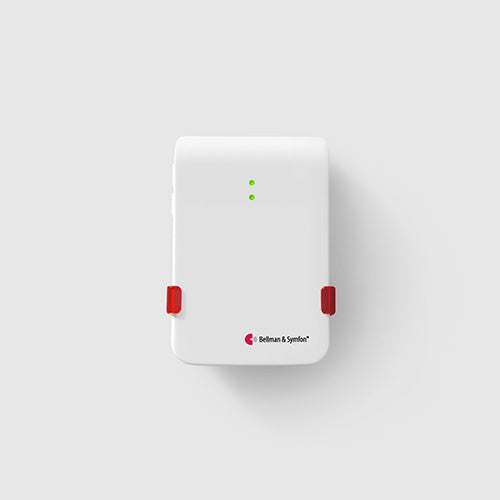

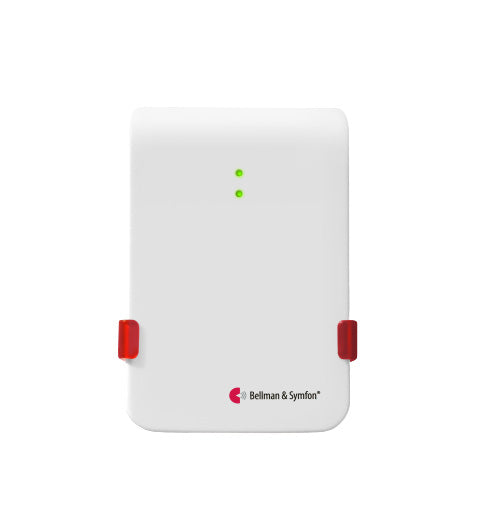

Bellman & Symfon Visit Baby Cry Transmitter

The Bellman Visit Baby Cry Transmitter will tell you when your baby needs your attention, no matter if you are several rooms apart. When your baby cries, the Bellman Visit Baby Cry Transmitter signals your connected Bellman Visit receiver(s) to notify you via flashing light, sound and/or vibrations. This way you are always close to your baby, no matter where in the house you are.

FEATURES:

Introduction

The Visit system consists of a number of radio transmitters and receivers. The transmitters detect different events in the surrounding area and transmit a radio signal to the receivers. The receivers pick up this signal and provide indications using light, sound and/or vibration.

The transmitter determines what type of light, sound or vibration should be displayed so that the reason for the indication is evident. Read through the entire user manual first and then start to install the system.

Getting started

Unpacking, installing and testing the unit

1. Open the battery cover (6). Fit one 9V battery, either a 6LR61 alkaline or 6F22 lithium type battery, and close the battery cover.
2. Press the Test Button (3). The Visit Baby Cry Transmitter lights up the LED (1) to indicate that the unit is transmitting a radio signal. The Visit receivers will indicate the Baby Cry Transmitter.

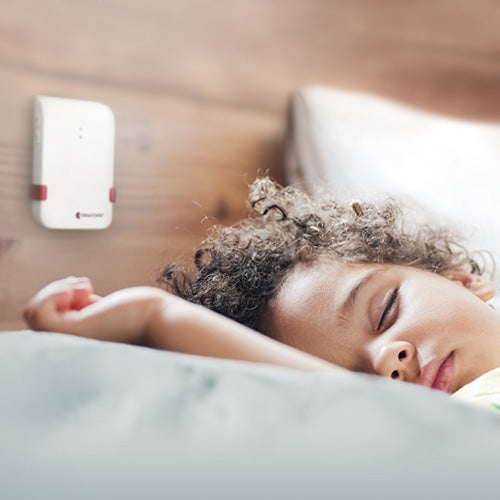

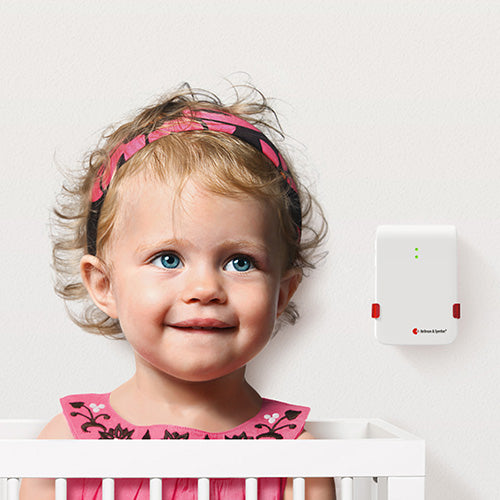

3. The Visit Baby Cry Transmitter can either be placed on a level surface using the base supplied or suspended on the wall mount bracket (5) on the screw supplied. A suitable distance from the child is 0.5-2 m. It should not be placed close enough for the child to reach it.

Function

General

The BE1490 Visit Baby Cry Transmitter is a radio transmitter within the Visit System for indoor use, which recognises the sound from a crying baby. The Baby Cry Transmitter is activated by the built-in microphone and can transmit different signal patterns to the receivers in the Visit System. The sensitivity can be controlled via the sound sensitivity switch (4) and the delay time before the Baby Cry Transmitter transmits radio signals can be controlled via the delay switches (7).

Sensitivity Switch 3 = On, high sensitivity
2 = On, normal sensitivity
1 = On, low sensitivity
0 = Off

Radio key

On delivery, all Bellman Visit units are tuned to the same Radio Key. If you have a neighbour with a similar system, you can change to different Radio Keys so that you do not affect each other’s systems.
If you use the Radio Key Switch (8) to change the Radio Key on this transmitter, you must also change all other units in your Visit System to the same Radio Key. Refer to the user manual for the relevant unit.

Please note:

All Bellman Visit products within the same system must be tuned to the same Radio Key in order to operate as a group.

Indicators and Signals

System indicators

The LED (1) lights up when the Baby Cry Transmitter transmits radio signals.

Power supply

When the Baby Cry Transmitter is activated, the LED (1) lights up green. This means that the battery is in good condition.
If the LED (1) lights up yellow, this means that the battery is flat and must be changed. Only use an alkaline 6LR61 or a lithium 6F22 type battery.

Troubleshooting in brief

Technical illustration

1. LED. Combined transmission and battery indicator. For further information see Indicators and Signals
2. Microphone
3. Test button
4. Sound sensitivity switch
5. Wall mount bracket
6. Battery cover
7. Delay and signal switches
8. Radio key switch

Technical information

Power supply

Battery power:

9 V 6LR61 alkaline
9 V 6F22 lithium

Operating time:

6LR61 alkaline: approximately 1 year
6F22 lithium: approximately 2 years

Power consumption:

Active: 30 mA
Idle position:  40 μA

Radio function

Radio frequency:

868,3MHz

Number of Radio Keys:

64 Radio Keys as standard. Special software can be used to increase these to 256 Radio Keys in increments of 64 per software purchase. Contact the nearest supplier for further information.

Coverage:

The normal coverage between a transmitter and receiver in the Bellman Visit 868 System is approximately 200 metres with a clear line of sight. Coverage is reduced if walls and large objects screen off the signals. Any thick walls constructed of reinforced concrete will greatly affect coverage. The system may also be affected by radio transmitters such as TV transmitters, computers, mobile phones, etc. This means that a unit may work perfectly in one part of the room but not at all in another.

Activation

Via test button.
Via built-in microphone.

Additional information

For indoor use only.

Dimensions WxHxD:

80 x 145 x 36 mm

Weight:

With battery: 210 g
Without battery: 170 g

Colour:

White with a red triangle.

This is part of the Bellman Visit Solution Range
